The keep hero, elevation, and exterior home features

The keep elevation and exterior home features

The Keep

3 Bed

2 Bath

2,040 Sq. Ft.

32' x 72'

The Keep

3 bedrooms

2 full bathrooms

2,040 sq. ft.

32' x 72'

Inventory model

Serial # CCV085551ALAB

See brochureCustom Order

Cavalier Series standard features

Construction

STRUCTURAL
Removable Hitches
2 x 8 Floor Joists 16″ O.C.
23/32″ T&G OSB Floors
8′-6″ Wall Height
2×4 Exterior Walls 16″ O.C.
Fixed Truss Rafters 24″ O.C.
Fixed Roof Pitch
INSULATION
R22-13-38

Home Mart Ardmore

Home Mart Ardmore is your trusted manufactured home dealer in Ardmore, Oklahoma. Offering new single wide and double wide mobile, modular and custom order homes from Top brands like Sunshine, Franklin, Champion, Clayton, Cavco. Visit our large inventory display lot at 2838 South Commerce St in Ardmore, OK for affordable homes, finance options, land home packages and expert customer service. Call 580-630-7250 today.

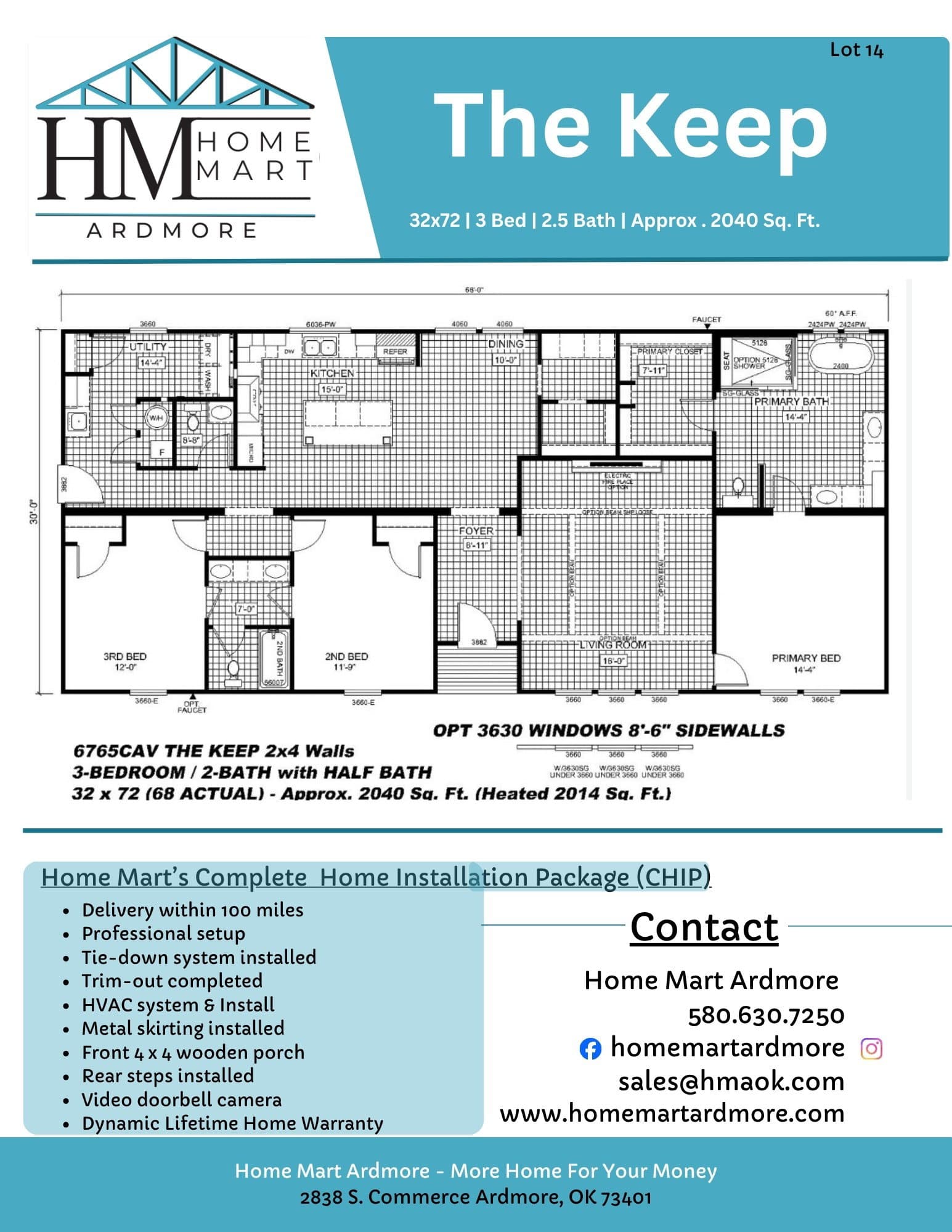

Floor Plan

Walk through this home in person

OKLAHOMA

Ardmore, OK

2838 S Commerce St, Ardmore, OK 73401, USA

(580) 630-7250

View details

Property map

Enter your address or APN/TMS to check if this home fits on your property

Enter your property street address or APN/TMS

Virtual Tour

Exterior

Exterior Elevation Per Print
Weatherwood Shingles – 3 Tab Fiberglass
Vented Overhangs
Exterior 7/16″ OSB Sheathing
House Wrap Air Infiltration Barrier
Vinyl Siding
Cemplank® Fascia
EXTERIOR DOORS & WINDOWS
Lux® Bronze 2/1 Windows
36 x 80 Front Door
36 x 80 1-Lite 1/2 Glass Rear Door
Kwikset® Locks

Interior

Flat Ceilings T/O
1/2″ Finished Drywall Throughout (3 Colors)
Includes Closets w/Corner Moldings
1/2″ High Strength Gypsum Ceiling Panel
Stomp Ceiling Finish
2 Panel Interior Doors
Molding Package Per Print
No Drapes or Valances
Faux Wood Blinds
Heavy Duty Interior Door Hinges
Congoleum® Vinyl Sheet Flooring- 3 Colors
Standard All Areas Except Bedrooms
Shaw® Carpet – 2 Colors (Opt T/O)
Rebond Pad

Kitchen

Samsung® Stainless Steel Appliances
Stainless Farm Sink – w/ Spring Faucet
Rangehoods – Print Specific
Microwave & Black Steel
Cabinet Hardware – Print Specific
36″ Overhead DOD Wood Cabinets
White, Charlynn Cherry, Hickory Gray
Post Formed Laminate Countertops
Ceramic Backsplash at Range Only

Mechanical

200 Amp Total Electric
Carrier® Electric Furnace
R8 Insulated Over Head Ducts
Rheem® 50 Gallon Water Heater
ecobee® Programable Thermostat
Pex Water Supply w/Whole House Shut-off
PVC Drain Lines
Exterior Recept (1) & Exterior Faucet (1)
Shut Off Valves
Ceiling Fan – LR – Print Specific
Pfister® Metal Faucets T/O

Exterior & Construction

STRUCTURAL
Removable Hitches
2 x 8 Floor Joists 16″ O.C.
23/32″ T&G OSB Floors
8′-6″ Wall Height
2×4 Exterior Walls 16″ O.C.
Fixed Truss Rafters 24″ O.C.
Fixed Roof Pitch
INSULATION
R22-13-38
Exterior Elevation Per Print
Weatherwood Shingles – 3 Tab Fiberglass
Vented Overhangs
Exterior 7/16″ OSB Sheathing
House Wrap Air Infiltration Barrier
Vinyl Siding
Cemplank® Fascia
EXTERIOR DOORS & WINDOWS
Lux® Bronze 2/1 Windows
36 x 80 Front Door
36 x 80 1-Lite 1/2 Glass Rear Door
Kwikset® Locks

STRUCTURAL

Removable Hitches

2 x 8 Floor Joists 16″ O.C.

23/32″ T&G OSB Floors

8′-6″ Wall Height

2×4 Exterior Walls 16″ O.C.

Fixed Truss Rafters 24″ O.C.

Fixed Roof Pitch

INSULATION

R22-13-38

Exterior Elevation Per Print

Weatherwood Shingles – 3 Tab Fiberglass

Vented Overhangs

Exterior 7/16″ OSB Sheathing

House Wrap Air Infiltration Barrier

Vinyl Siding

Cemplank® Fascia

EXTERIOR DOORS & WINDOWS

Lux® Bronze 2/1 Windows

36 x 80 Front Door

36 x 80 1-Lite 1/2 Glass Rear Door

Kwikset® Locks

Kitchen

Samsung® Stainless Steel Appliances
Stainless Farm Sink – w/ Spring Faucet
Rangehoods – Print Specific
Microwave & Black Steel
Cabinet Hardware – Print Specific
36″ Overhead DOD Wood Cabinets
White, Charlynn Cherry, Hickory Gray
Post Formed Laminate Countertops
Ceramic Backsplash at Range Only

Samsung® Stainless Steel Appliances

Stainless Farm Sink – w/ Spring Faucet

Rangehoods – Print Specific

Microwave & Black Steel

Cabinet Hardware – Print Specific

36″ Overhead DOD Wood Cabinets

White, Charlynn Cherry, Hickory Gray

Post Formed Laminate Countertops

Ceramic Backsplash at Range Only

Bathroom

72″ Ceramic Shower- W/ Seat
With Rainhead Shower
Fiberglass Tub – Per Print
60″ Vanderbilt Tub/Shower – Secondary Baths
Elongated Toilets
Square Ceramic Lavs
Can Lights Over Vanities
Black Iron Mirrors – Primary Baths

72″ Ceramic Shower- W/ Seat

With Rainhead Shower

Fiberglass Tub – Per Print

60″ Vanderbilt Tub/Shower – Secondary Baths

Elongated Toilets

Square Ceramic Lavs

Can Lights Over Vanities

Black Iron Mirrors – Primary Baths

Interior

Flat Ceilings T/O
1/2″ Finished Drywall Throughout (3 Colors)
Includes Closets w/Corner Moldings
1/2″ High Strength Gypsum Ceiling Panel
Stomp Ceiling Finish
2 Panel Interior Doors
Molding Package Per Print
No Drapes or Valances
Faux Wood Blinds
Heavy Duty Interior Door Hinges
Congoleum® Vinyl Sheet Flooring- 3 Colors
Standard All Areas Except Bedrooms
Shaw® Carpet – 2 Colors (Opt T/O)
Rebond Pad

Flat Ceilings T/O

1/2″ Finished Drywall Throughout (3 Colors)

Includes Closets w/Corner Moldings

1/2″ High Strength Gypsum Ceiling Panel

Stomp Ceiling Finish

2 Panel Interior Doors

Molding Package Per Print

No Drapes or Valances

Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
